Drowning Systems

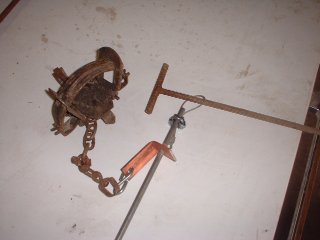

Slide rod system with no welding required

Slide rod bottom end w/cable clamp

Slide rod  bank end cable clamp w/ cable loop.









1. Cable  loop w/double ferrule

2. Cable clamp

1&2 connected to slide rod to form stake loop. This loop could be used top and bottom if you choose to stake both ends.



Adjustable drowning cable. Three holes drilled through rebar. Stop button not shown.

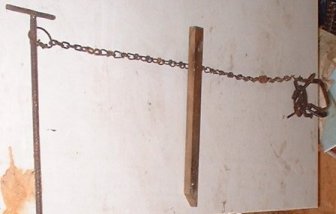

Tangle stake system - Wooden stake is driven out in the water. The animal wraps around the stake and can't return to the bank.

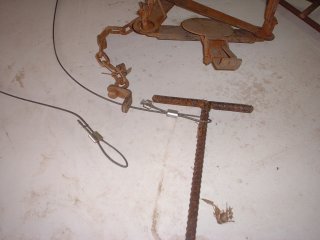

Cable drowning system. Top loop is adjustable, the bottom stake loop is not.

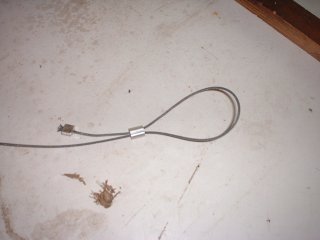

Double ferrule and stop button to form adjustable loop.

Drowning System, welding required

Lower end of rods. #3- nut welded on rod. #4 -spade welded on rod.



Washer welded on rod, could be used on top and bottom to hold T bar stake.

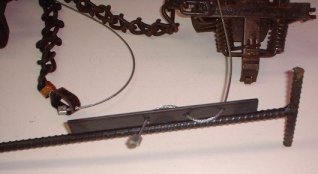

Piece of 3/4" flat stock welded to side of T bar to make system adjustable. Drill  3 holes about 2" apart and add stop button to end of cable.
